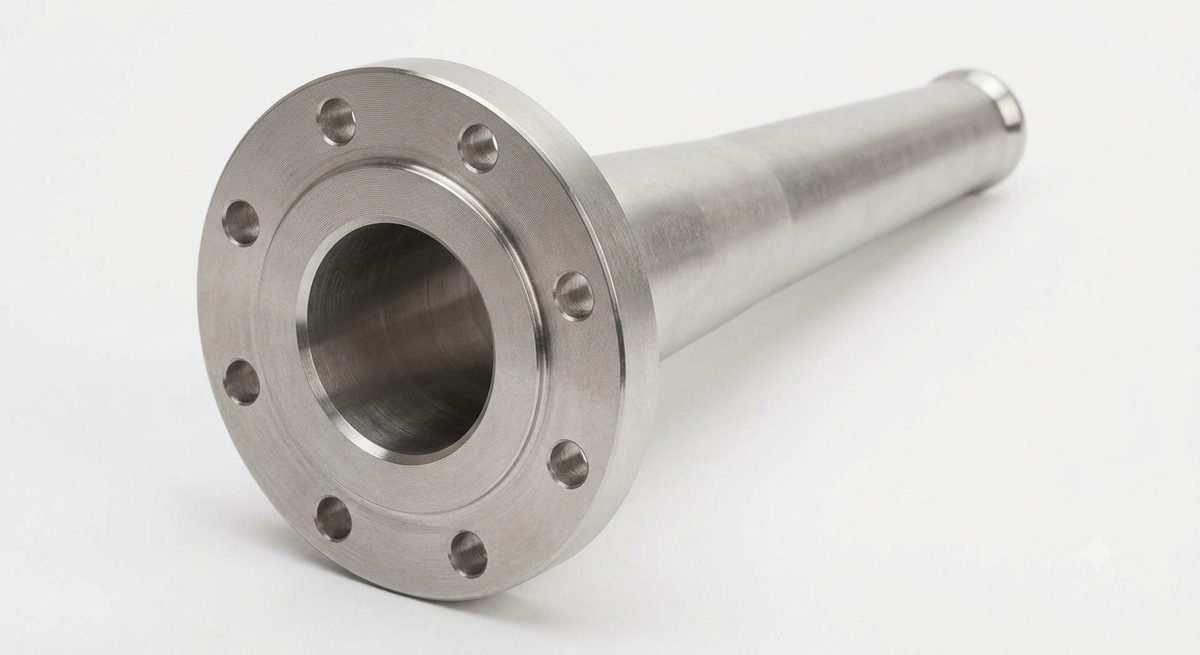

Nickel 200 Long Weld Neck Flanges are forged commercially pure wrought nickel flanges made from UNS N02200 / W.Nr. 2.4066 material, typically supplied to ASTM B564 material requirements and ASME B16.5 dimensional standards in pressure classes 150# – 2500#. Ragnar Metals & Tubes manufactures and exports these flanges with RF / RTJ facing options, EN 10204 3.1/3.2 documentation, and third-party inspection on request.
Ragnar Metals & Tubes is a 200 Long Weld Neck Flange Supplier and manufacturer of Nickel 200 (UNS N02200) long weld neck flanges to ASTM B564 and applicable ASME flange dimensional standards, with common sizes and classes available from stock, subject to current inventory, for export and EPC orders.
A long weld neck flange extends the standard weld neck's hub length, effectively integrating a length of pipe or nozzle reinforcement directly into the flange forging. The extended hub can eliminate a separate pipe or nozzle section and adds reinforcement at vessel penetrations, and is commonly specified to a customer drawing rather than a fixed catalogue length.
Nickel 200 is a commercially pure wrought nickel (UNS N02200) known for excellent resistance to caustic alkalis and good electrical/thermal conductivity, suited to moderate-temperature service.
UNS Number
Grade
Flange Type
Standard
MTC
Inspection
Origin
Export
| Class | Standard | Typical Facing |
|---|---|---|
| 150 | ASME B16.5 | RF / FF / RTJ |
| 300 | ASME B16.5 | RF / FF / RTJ |
| 600 | ASME B16.5 | RF / RTJ |
| 900 | ASME B16.5 | RF / RTJ |
| 1500 | ASME B16.5 | RF / RTJ |
| 2500 | ASME B16.5 | RF / RTJ |
Not every class/size combination applies to every flange type. Pressure-temperature ratings must be selected against the applicable ASME rating tables and actual design conditions.
Send us your size, class and quantity — we'll come back with pricing and lead time.
The Middle East and Indian sub-continent are home to hundreds of metal suppliers ranging from small trading shops to large ISO-certified manufacturers. International buyers typically evaluate a supplier on quality compliance, production capability, export experience and pricing transparency before placing a bulk order.
Extended hub length versus a standard weld neck flange
Integrates nozzle reinforcement into a single forging
Reduces the number of welds at a vessel penetration
Typically manufactured to project-specific drawings
Full-penetration weld joint to the connecting pipe
Manufactured from Nickel 200 (UNS N02200) for excellent resistance to caustic alkalis and good electrical/thermal conductivity
| Product | Composition | Usage | Standards |
|---|---|---|---|
| Nickel 200 Long Weld Neck Flange – Standard Class | UNS N02200 | General process piping | ASME B16.5 |
| Nickel 200 Long Weld Neck Flange – High Pressure | UNS N02200 | High-pressure / critical service | ASME B16.5 |
| Specification | Details |
|---|---|
| UNS Number | N02200 |
| Grade | 200 |
| Flange Type | Long Weld Neck Flange |
| Standard | ASTM B564 / ASME B16.5 |
| Werkstoff Number | 2.4066 |
| Pressure Class | 150# – 2500# |
| Facing | RF / RTJ |
| Size (mm) | Size (mm) |
|---|---|
| 15 | 20 |
| 25 | 32 |
| 40 | 50 |
| 65 | 80 |
| 100 | 125 |
| 150 | 200 |
| 250 | 300 |
| 350 | 400 |
| 450 | 500 |
| 600 |
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 99.0 Min |
| Carbon (C) | 0.15 Max |
| Manganese (Mn) | 0.35 Max |
| Iron (Fe) | 0.40 Max |
| Copper (Cu) | 0.25 Max |
| Sulfur (S) | 0.01 Max |
| Property | Value |
|---|---|
| Tensile Strength | 345 MPa Min (annealed) |
| Yield Strength (0.2%) | 100 MPa Min |
| Elongation | 40% Min |
| Property | Metric | Imperial |
|---|---|---|
| Density | 8.90 g/cm³ | 0.321 lb/in³ |
| Melting Point | 1435 – 1446 °C | 2615 – 2635 °F |
| Value (µΩ·m) | Temperature (°C) | Condition |
|---|---|---|
| 0.096 | 20 | Annealed |
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| UNS | 2.4066 | N02200 |
| ASTM / ASME | B564 / SB564 | N02200 |
| Common Trade Name | Nickel 200 | N02200 |
Forged Nickel 200 billets are pressed into flange blanks, annealing to restore corrosion resistance and mechanical properties, then CNC-machined to the required class, bore and facing.
| Process | Temperature | Medium | Purpose |
|---|---|---|---|
| Annealing | 700 – 825°C | Air or Water Cool | Restore ductility after forging |
Not sure of every specification? Send your drawing, BOQ or existing part photo and our team can review the requirement.
Extended hub length as specified · Forged, RF/RTJ facing
Vessel nozzles, reinforced penetrations
Caustic soda (sodium hydroxide) handling
Food and beverage processing equipment
Chemical processing
Electrical and electronic components
Pressure vessel and boiler drum nozzles
Applications requiring integral reinforcement at a pipe penetration
| Property | Nickel 200 | Nickel 201 |
|---|---|---|
| Alloy Family | Commercially Pure Wrought Nickel | Low-Carbon Commercially Pure Wrought Nickel |
| UNS / Werkstoff | N02200 / 2.4066 | N02201 / 2.4068 |
Nickel 201's lower carbon content avoids graphitization embrittlement above roughly 315°C, making it the preferred choice for high-temperature caustic service; Nickel 200 is used for lower-temperature service.
| Size | Price (USD) | Price (INR) |
|---|---|---|
| 1/2" – 2" NB, 150# | $18 – $40 / pc | ₹1,500 – ₹3,300 / pc |
| 4" – 8" NB, 300# | $70 – $250 / pc | ₹5,800 – ₹20,750 / pc |
| 10" – 24" NB, 600# | $350 – $1,600 / pc | ₹29,000 – ₹1,33,000 / pc |
Indicative only — actual price depends on size, class, quantity and market rates. Request current pricing above.
Common sizes and standard pressure classes may be available from stock, subject to current inventory. Non-standard sizes, higher pressure classes and project-specific inspection requirements are manufactured or sourced against confirmed orders. Contact us for current stock status and lead time.
MOQ: 25 – 100 Kg / pieces depending on grade, size and product form.
Payment: T/T (bank transfer), Letter of Credit (LC at sight or usance), and SWIFT transfer, depending on order value and buyer requirements.
All export orders are packed in seaworthy, fumigated wooden crates with waterproof inner lining, or palletised packing with clear shipping marks and heat-number identification for full traceability.
Container stuffing is supervised and loading photographs are shared on request, along with certificates of origin, mill test certificates and packing lists for smooth customs clearance at destination ports.
Every Nickel 200 Long Weld Neck Flange is checked for chemistry, tensile strength, hardness and dimensions before dispatch. PMI, radiography and third-party inspection (TUV, BV, SGS, Lloyd's) are available on request, with EN 10204 3.1/3.2 certification.
Documents listed are available on request; not every document applies to every order.
NPS / DN size
Pressure class
Quantity
Facing
Pipe schedule / bore
Material / standard requirement
MTC requirement
Third-party inspection requirement
Delivery location
Required delivery date
Don't know all the specifications? Send your drawing, BOQ or existing part photo and our team can review the requirement.
200 Long Weld Neck Flange Manufacturer — full mill traceability with every order
200 Long Weld Neck Flange Exporter — export documentation and seaworthy packing for every shipment
200 Long Weld Neck Flange Stockist — common classes and sizes available from stock, subject to inventory
200 Long Weld Neck Flange Distributor — dedicated support for EPC contractors and trading partners
20+ years exporting nickel and specialty alloy flanges
ISO certified quality systems
Nickel 200 sourced and tested to ASTM B564
Mumbai, Delhi, Pune, Chennai, Hyderabad, Bengaluru, Ahmedabad, Rajkot, Coimbatore, Kolkata, Surat, Vadodara
For buyers searching for a 200 Long Weld Neck Flange in UAE, Ragnar Metals & Tubes is an India-based manufacturer and exporter supplying Nickel 200 Long Weld Neck Flanges to buyers and EPC contractors in the UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain, with export documentation and seaworthy packing for every shipment.
UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, USA, UK, Germany, South Africa, Australia, Malaysia
ISO 9001:2015
ISO 10002:2018
GST Registration
Udyam Registration
Before placing an order, confirm:
Don't know the exact specification yet? Send your BOQ or drawing and we'll confirm it with you.
Send us your size, class and quantity — we'll come back with pricing and lead time.
Browse: All Flanges
A long weld neck flange extends the standard weld neck's hub length, effectively integrating a length of pipe or nozzle reinforcement directly into the flange forging.
150# – 2500# per ASME B16.5, depending on size and facing.
Yes, EN 10204 3.1 as standard; 3.2 third-party certification on request.
RF / RTJ.
Yes, we regularly export to the UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.
Yes, through TUV, BV, SGS or Lloyd's before dispatch.
The material is supplied to ASTM B564 (UNS N02200); dimensions follow the applicable ASME flange dimensional standard, including ASME B16.5 and, for larger sizes, ASME B16.47.
Size (NPS/DN), pressure class, facing, quantity, MTC and inspection requirements, and delivery location.
Yes, a sample Material Test Certificate can be shared on request to confirm our documentation format.
It is normally specified to a customer drawing based on the vessel wall thickness, reinforcement and nozzle projection required for the specific installation.
Nickel 200 offers excellent resistance to caustic alkalis and good electrical/thermal conductivity, suited to moderate-temperature service.
Yes — Nickel 200 Long Weld Neck Flanges in UNS N02200 are exactly what we manufacture and export; share your size, class and quantity and we'll quote directly.
